Can be customized MCD cutters Monocrystal Nature diamond non ferrous metal Sample Available

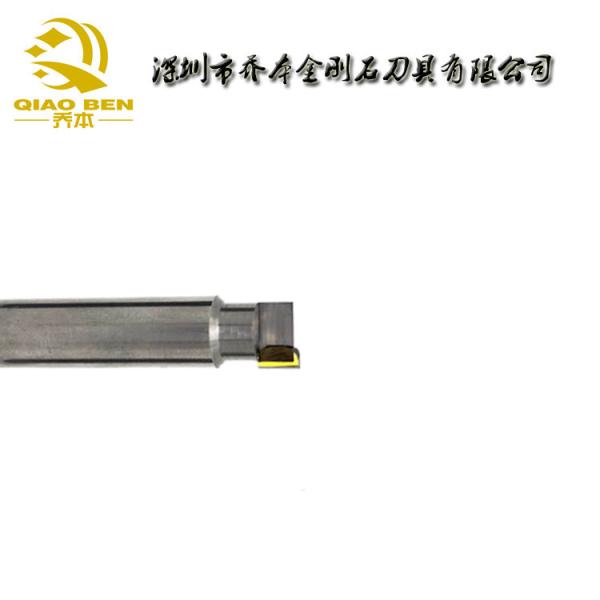

This product is a natural diamond high-gloss mirror turning tool produced by our company. The cutting material of the tool tip is high-quality natural industrial diamond. It is suitable for high-gloss mirror turning of non-ferrous metals (copper, aluminum, zinc, titanium, etc.) and the end face and outer circle of organic plate.
Assembly in good stability of the CNC machine tool after cutting can make the workpiece processed surface to produce mirror effect, and the finish of RA0.1.
Select high quality natural diamond, adopt special welding technology to weld natural diamond single crystal on the tool bar, through special geometric Angle design and grinding technology.
According to customer requirements processing into various angles, radians, mainly used for aspheric surface and free optical surface processing, Wiener processing, ultra-precision processing, such as: used for turning optical plexiglass, high finish non-ferrous metals, ceramics and so on.
1) In the process of processing different materials, to achieve different effects of the knife selection process, it is recommended to use the tool with a short edge as far as possible.
Because the cutting edge is too long or the tool body is too long will cause the processing of the tuning and deflection, resulting in tool damage and processing product quality.
2) Must use the appropriate size of the jacket, due to serious wear or not enough round and inner hole with taper jacket, can not provide enough clamping strength, resulting in vibration or twist the handle and fly off.
3) When the tool is found to have uneven contact marks or grooves on the tool handle after clamping, it indicates that there is slip or deformation of the inner hole of the fixture.
The jacket should be replaced immediately.
The tool handle and jacket must be fully tightened and firm, in order to encourage the tool handle fracture or accident.
4) Keep the tool clean after work, and use standard industrial solvents to remove dirt sticking on the tool.
5) Do not arbitrarily from the grinding tool and change the tool type, because each grinding process requires professional grinding equipment and professional grinding skills.
Otherwise, it is easy to cause knife edge fracture and accidents.
| MCD Recommended Cutting Condition |
| Work piece | Cutting Speed | Depth of Cut | Feed Rate |
| (m/min) | (mm) | (mm/rev) |
| Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
| Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
| Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
| Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
| Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
| High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
| Ceramics |
| Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
| Welcome and congratulations!You found us a professional factory! |
| Size & Design | 1.We not only supply all kinds of high quality solid carbide turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head. |
| 2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. |
| 3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. |
| 4. HS Code reference for you to control everything:8207709000. |
| 5. Mixed size and types in one batch available. |
| 6. For distributor,we can label your brands on cutters and plastic box. |
| Plating | 1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
| 2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! |
| MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
| OEM One-Step Packing | We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
| Samples Service | 1. Some items free samples for you. |
| 2. Free samples but pay shipping cost. |
| 3. Lowest shiping fee for you to choose. |
| 4. Order to us,sample fee will be refund to you. |
| 5. Become our VIP clients,free samples for you! |
| 6.OEM samples are hot welcome. |
1. Customers send detailed inquiry to us by email;
2. We reply with price, specifications, packing, photos, and other details;
3. Both of us agree the price and confirm the details;
4. We write the proforma invoice and send to customers;
5. Customers make deposit;
6. We make mass production samples;
7. We send mass product samples or send photos to customers for approval;
8. Customers confirm the mass production samples;
9. We start mass production.(we have huge stock for most standard end mills);
Business Terms
Accepted Delivery Terms: FOB,CNF,CIF
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, Western Union
Nearest Port: Guangzhou port, Shenzhen port, Shanghai port
Response Rate (last 30 days)
98.6% of buyers who contacted this supplier received a response within 24 hours.
Average Response Time (7 days)
The supplier's average response time of received inquiries is within 12 hours.
Quotation Performance (last 30 days)
The supplier have sent 33 quotes to buyers in last 30 days.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
Our advantage:
- 1. 10 years experience in carbide roll and cutting tool manufacturing
- 2. From row material to tool produdtion.
- 3. World top level prodution equipment and rich experience team
ATTACTION:
- 1. Make sure work piece and machine are stable and use a precision holder.
- 2. Please adjust the speed,feed and cutting depth according to actual cutting conditions.
- 3. The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
